Laker 610 Camper Electric Package
Product Description

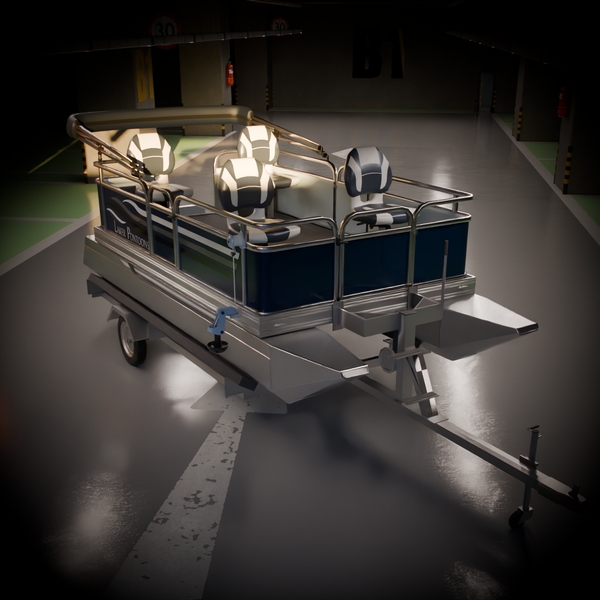

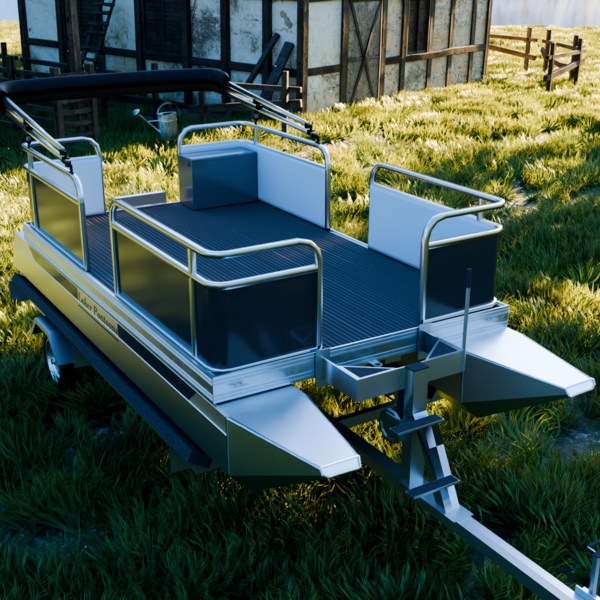

The Laker 610 Camper Electric is all-aluminum construction w/spray-on, non-skid decking (truck bed liner style). Extruded aluminum decking, with 1.25" square aluminum rails and .090 gauge pontoons. Pontoons are all welded with two chambers and bolted on. This package will get you on the water at an affordable price. For technical specifications, standard features and options that are included, see below. Shown with optional trailer, ladder and battery power box. Camping chairs are not included! If a trailer is purchased with package the overall dimensions are 18'8"L x 6'10"W x 7'6"H w/ bimini top in down position as shown above. Length can be shortened by approximately 11" by moving the winch stand forward. You can also purchase a breakaway tounge and take an additional 3' off of the lenght. Handle on the front of trailer is 7 foot tall, so if you drop the bimini top off of the brace kit, top will drop 12", but the handle limits you to 7' tall. All pictures and video's of Laker Pontoons are shown with options because they are custom built to order.
Features
All Aluminum Construction (no wood / no rot)
Two large volume 3 chambered welded .090 thick bolt on aluminum square pontoons
Double layered aluminum beach contact points / skid plate
4 Tie off cleats
C Channel all aluminum deck
Transducer Mount for future depth finder
hardware for future swim ladder install
Extra strong welded on bow eye
Tiller style electric rear engine mount w/ strap points
Durable non slip truck bed liner style floor coating
Pressure Check Valves / 2 per pontoon
Pontoon Splash Guards / 1 per pontoon
Options Included:
24 inch Aluminum Rails w/18 inch Fill-Ins
Bimini Top
55lb Tiller Minn Kota Endura Max Trolling Motor
Deep Cycle Marine Battery
Power Station Battery Box
1 Bank Onboard Charger(camping chairs and trailer are not included)
Boat Specifications:
Length: 13'10"
Width: 6'
17"x16.75" Square Pontoons
Persons Capacity: 4 or 720 lbs
Persons, Motor & Gear: 1100 lbs
HP Rating: 10 HP
Weight: 560 lbs
Inside Deck Size: 6'x10'
Rail Height: 24"
5 Year Limited Warranty
Estimated lead time is 3 to 4 weeks. This could change due to options being on backorder.
