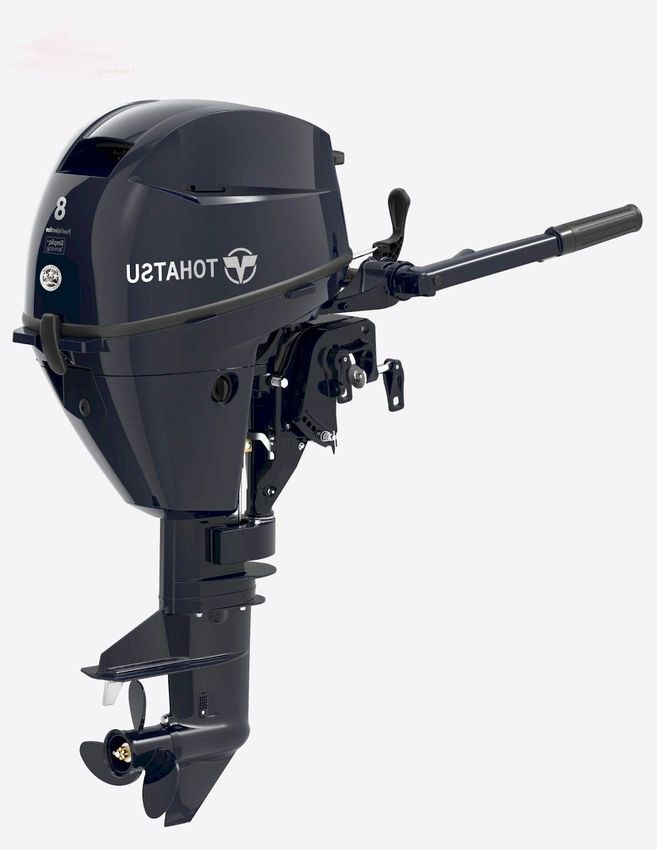

Tohatsu 8HP 4-Stroke Outboard

Product Description

tr>

Engine Type	4-Stroke 2 Cylinder
Output	8 hp (5.9 kw)
Displacement	209 cc (12.8 cu.in.)
Bore x Stroke	55 x 44 mm (2.17 x 1.73 in))
Max. RPM Range	5,300 - 6,200
Starting System	Electric or Manual
Control Type	Tiller
Gear Shift	Forward - Neutral - Reverse
Dry Weight	85 lbs. (38.5 kg)
Fuel Tank	3.1 US Gal. (12 Lit) Separate Fuel Tank
Oil Capacity	0.8 US qt. (800 mL)
Oil Type	NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SH, SJ, SL)
Gear Ratio	2.08:1
Propeller	Aluminum (Standard)
Propeller Selection Range	6.5" - 9.5"
Alternator Output	12V, 84W, 7A

✓ 360° Full Pivot Steering
✓ Newly designed Tohatsu’s unique front and back carrying handles for easier transportation
✓ 4-Point Vibration Dampening
✓ Easy Check Oil Gauge
✓ Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
✓ Thermostat Controlled Cooling System
✓ Low oil pressure indicator
✓ Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
✓ Start-in-gear protection for safer engine starting
✓ Recoil starter with larger reel making manual starting fast and easy
✓ Over-rev. limiter
✓ Shallow water drive
✓ 6 trim positions
✓ Ultra-low emission, EPA and CARB 3-Star rating approved
✓ Newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products
✓ 3-way storage positions without worrying about oil spill
✓ Light and compact
✓ Front mounted shift lever, an industry first in its class
✓ Greatly reduced vibration for smooth and stable running at all speeds
✓ Greatly reduced induction noise for a quieter ride
✓ 5 Year limited warranty

Download Owner's Manual
PDF Format (1.8 MB)
