Kayak Dock Launch
Product Description
A smoother start to your day on the water
Bring your kayak alongside a low-profile floating launch designed to help you pull your boat onto the dock. This kayak dock launch provides an 11-foot platform for compatible kayaks, canoes and stand-up paddleboards, with a textured surface and options for connecting to a fixed or floating dock.
A 9-inch-high dock with a low entry point.
UV-protected low-density polyethylene shell with EPS foam.
Choose the quantity above and plan the mounting arrangement for your waterfront.
Check your watercraft width: Kayaks and canoes must be under 35 inches wide; SUP boards must be under 33 inches wide. The dock measures 11 feet long by 5 feet 4 inches wide.
Dimensions & specifications
| Specification | Details |
|---|---|
| Length | 11' |
| Width | 5'4" |
| Height | 9" |
| Weight | 225 lbs |
| Weight Capacity | 1400 lbs |
| Max Width for Kayak/Canoe | Under 35" |
| Max Width for SUP Board | Under 33" |
| Material | UV-protected plastic shell, EPS foam-filled, non-slip surface |
| Color | Beige |
Mounting & configuration options
Plan the connection to your existing dock before ordering. The arrangements below show the mounting and linking hardware used for one- and two-dock installations. Confirm the appropriate kit and what is included with your selected setup.
Purchase separately: The galvanized Z-bracket kit is optional. The 4-inch PVC mounting pipe and 1-inch PVC handrails are not included. Handrail pipe is sourced locally and cut to the desired length.
| Configuration | Hardware arrangement |
|---|---|
| One Dock - Configuration 1 |
|
| One Dock - Configuration 2 |
|
| Two Docks - Configuration 1 |
|
| Two Docks - Configuration 2 |
|
| Two Docks - Configuration 3 |
|

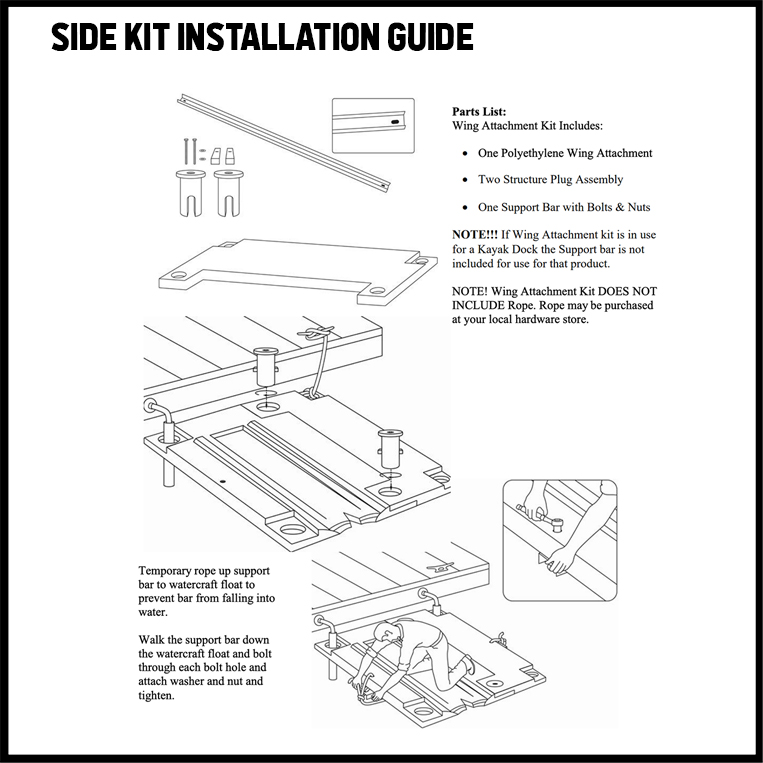

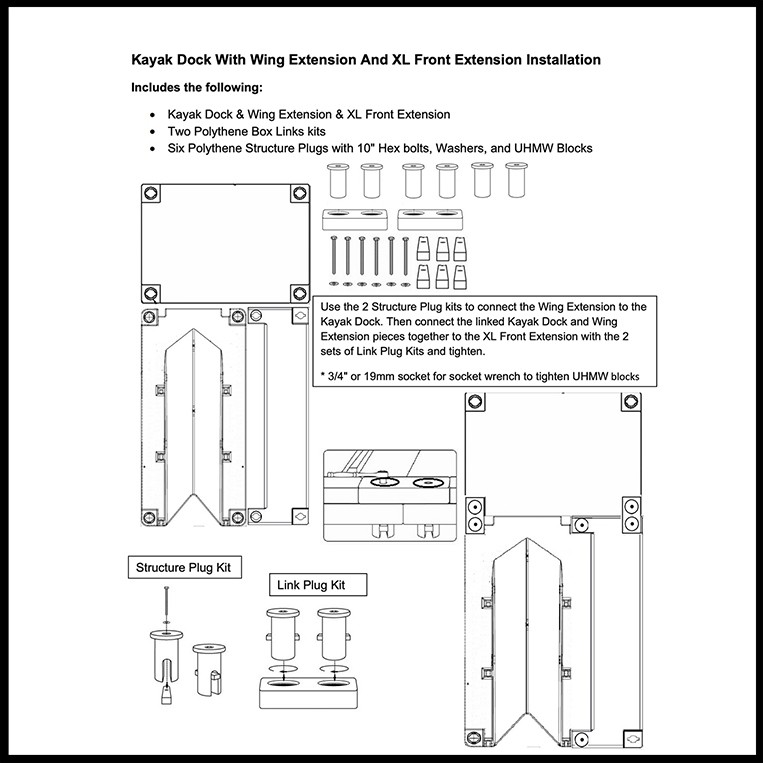

Installation images & guides
Use these illustrations to review the dock layout and attachment options.
Watch the kayak dock launch
Questions & Answers about Kayak Dock Launch
- how long of the 1" PVC do we need per kayak lift?
- The 1” PVC Pipe is Cut To Desired Length.
- How do I add handrails to this dock ?
- You will have to purchase 1" PVC pipe locally to make your handrails.
- How easy is the kyack launch dock to install on an existing floating dock?
- It should be straightforward since both docks float together and move with the same wave action, so there’s minimal stress on the attachment point. The main consideration is where to connect to your existing floating dock. If it’s a plastic dock, attachment can be more complicated. However, if it’s a wood floating dock, connecting the two is much easier.
- How do I keep the dock from sticking to the lake bed when water is down?
- Proper installation is key to ensuring your drive-on dock does not become lodged in the mud during low water periods. To achieve this, we recommend constructing a stable base with cinder blocks. The blocks should be laid as level as possible on the bottom. On a sloped surface, you can create a level plane by stacking blocks higher in the deeper section. An added benefit is that the blocks will eventually develop a slimy layer, which provides a protective cushion for the plastic dock.
- Is there an overhead bar avaliable to assist standing up on the kayak launch?
- Unfortunately, there is not.
- Regarding the kayak launch pad. have two jet ski pads in the water now . Can I connect to these pads with a bracket or does it need to be attached to the dock. Also how much is shipping to 29685. Thank you
- I would recommend attaching it to the dock.
