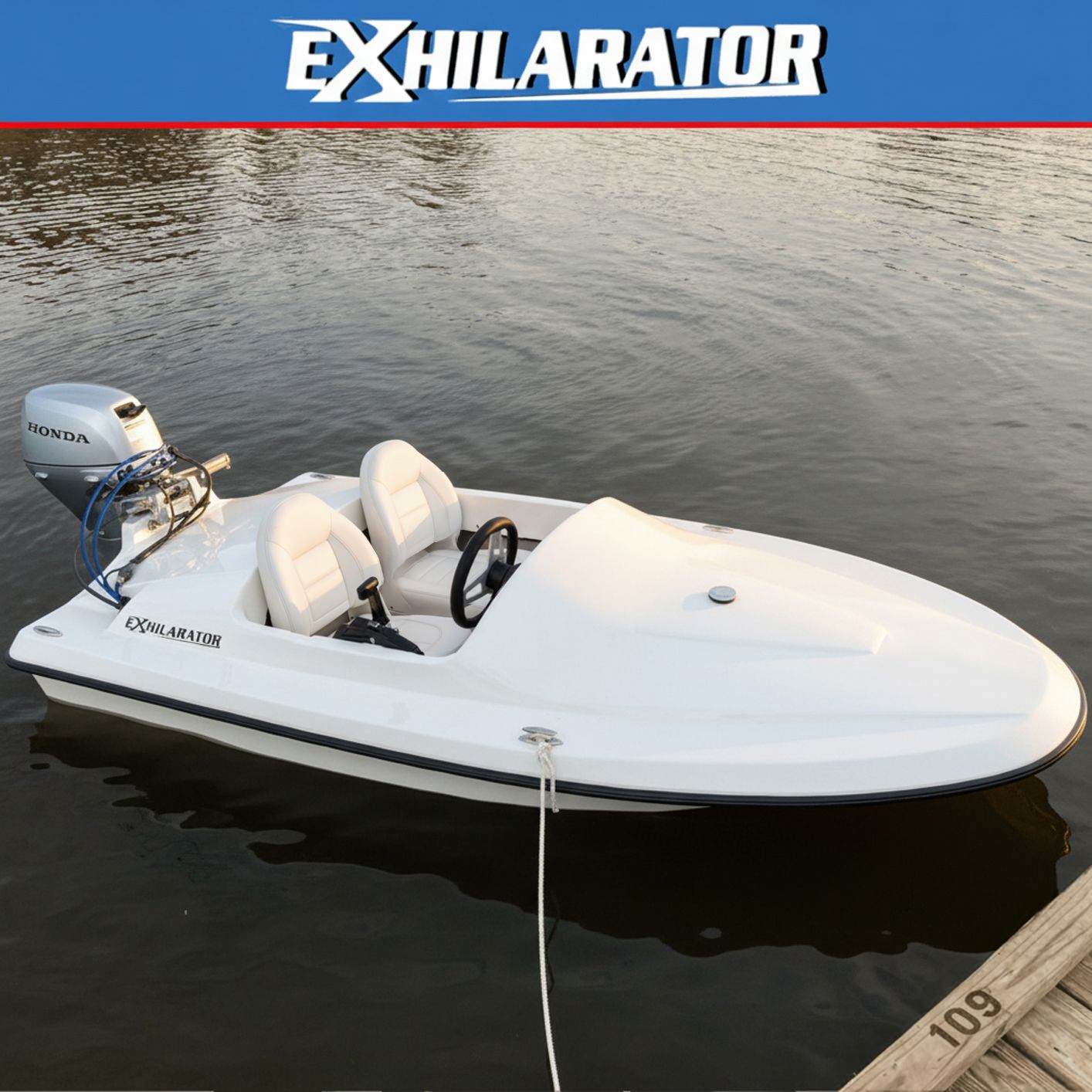

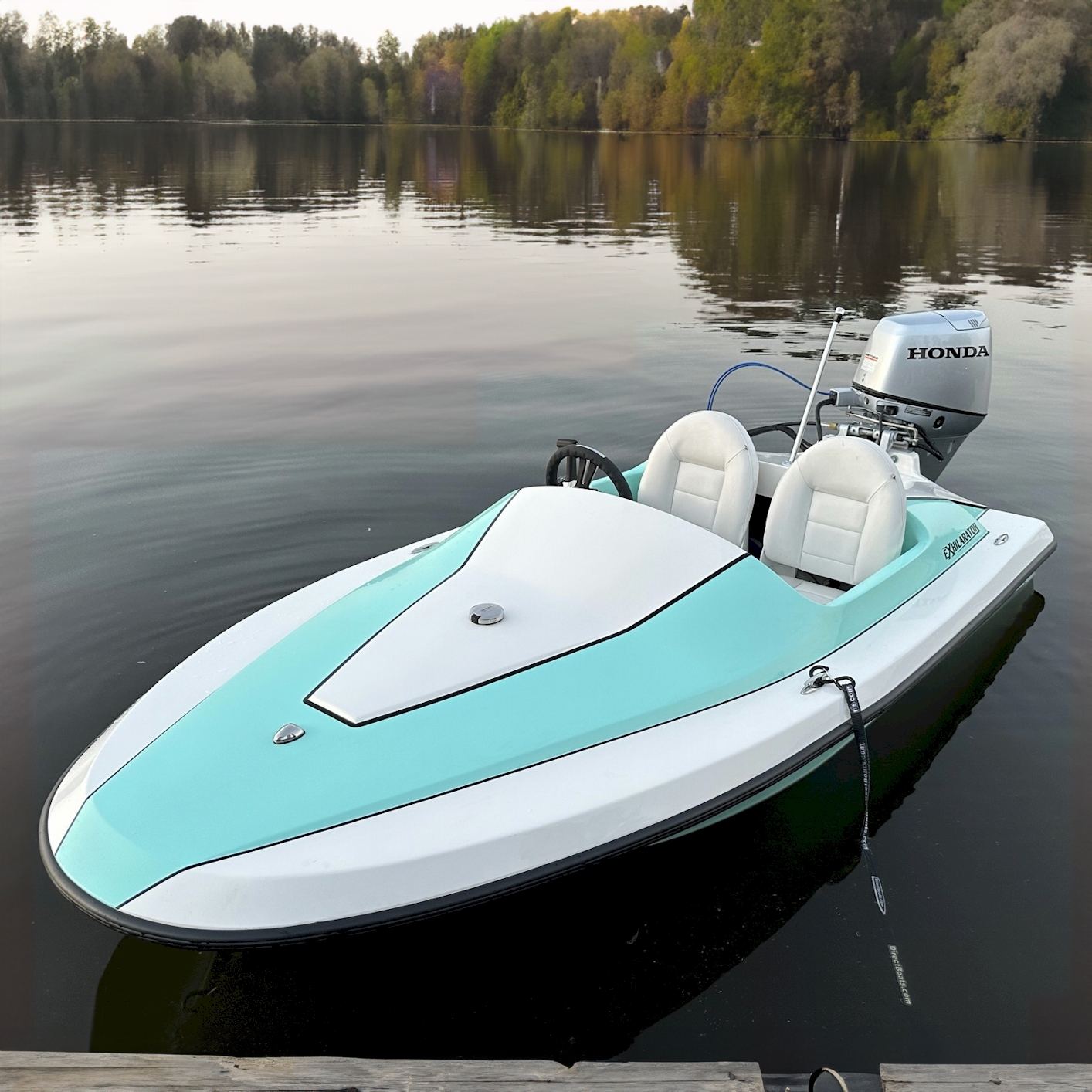

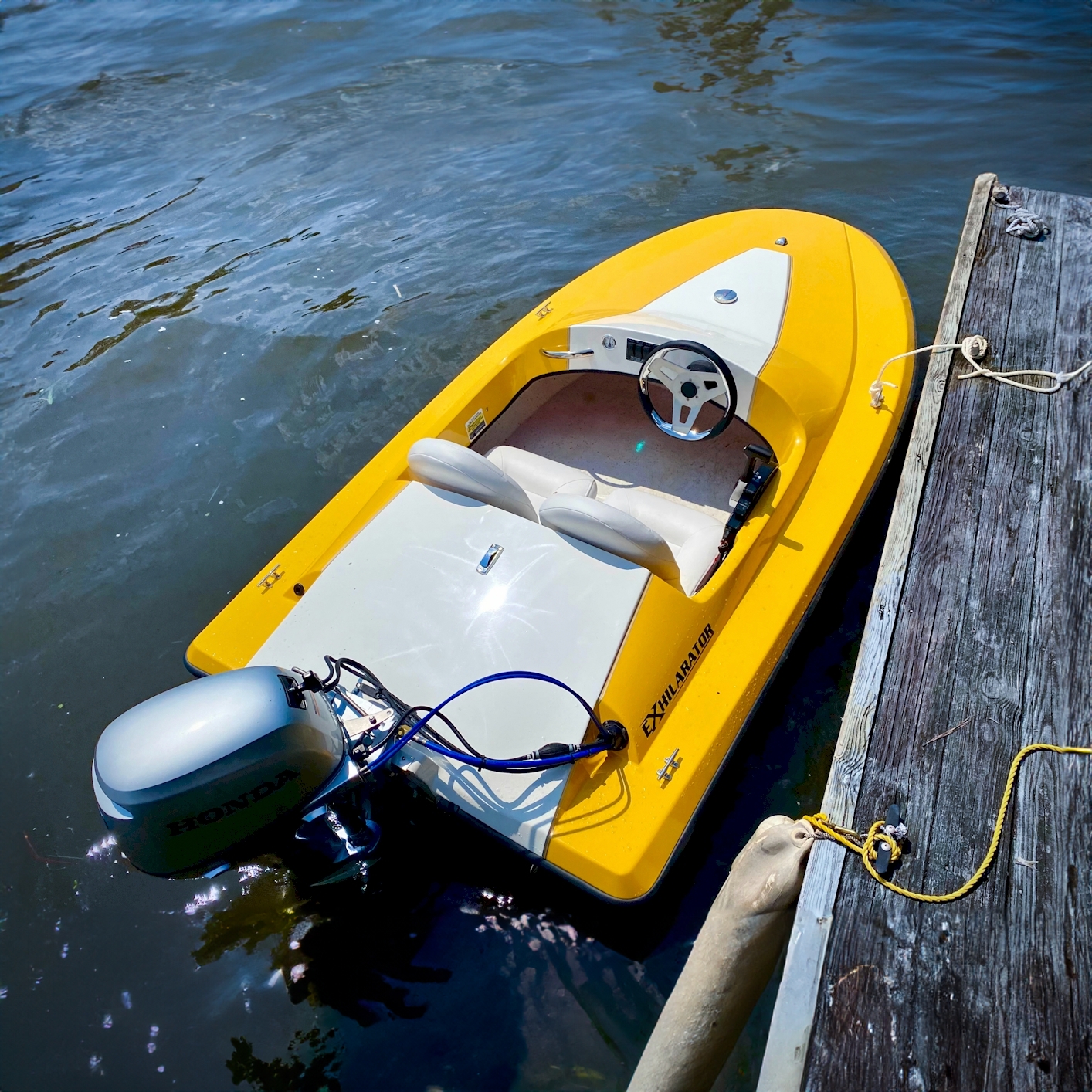

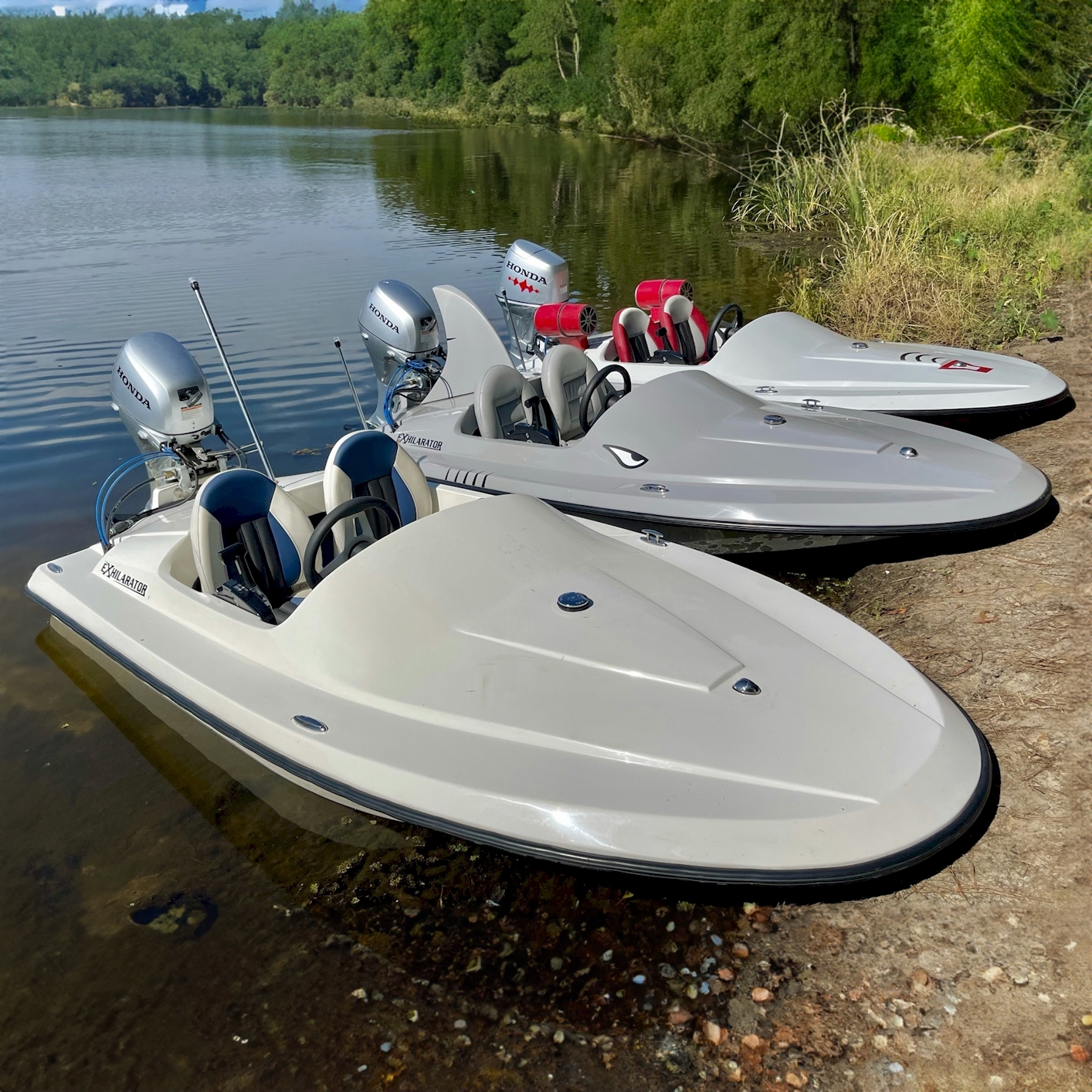

Exhilarator 109 Custom Built
Product Description
Gallery
Top Color White
Select the primary color for the top half of the hull. Standard White is included. Other colors are +$198.
Bottom Color White
Select the primary color for the bottom half of the hull. Standard White is included. Other colors are +$198.
Stripe Style
Choose a sporty accent stripe. Single stripe adds a sleek line; Dual stripe adds a bold racing look.
Dual
Single
None
Stripe Color White
×
Details

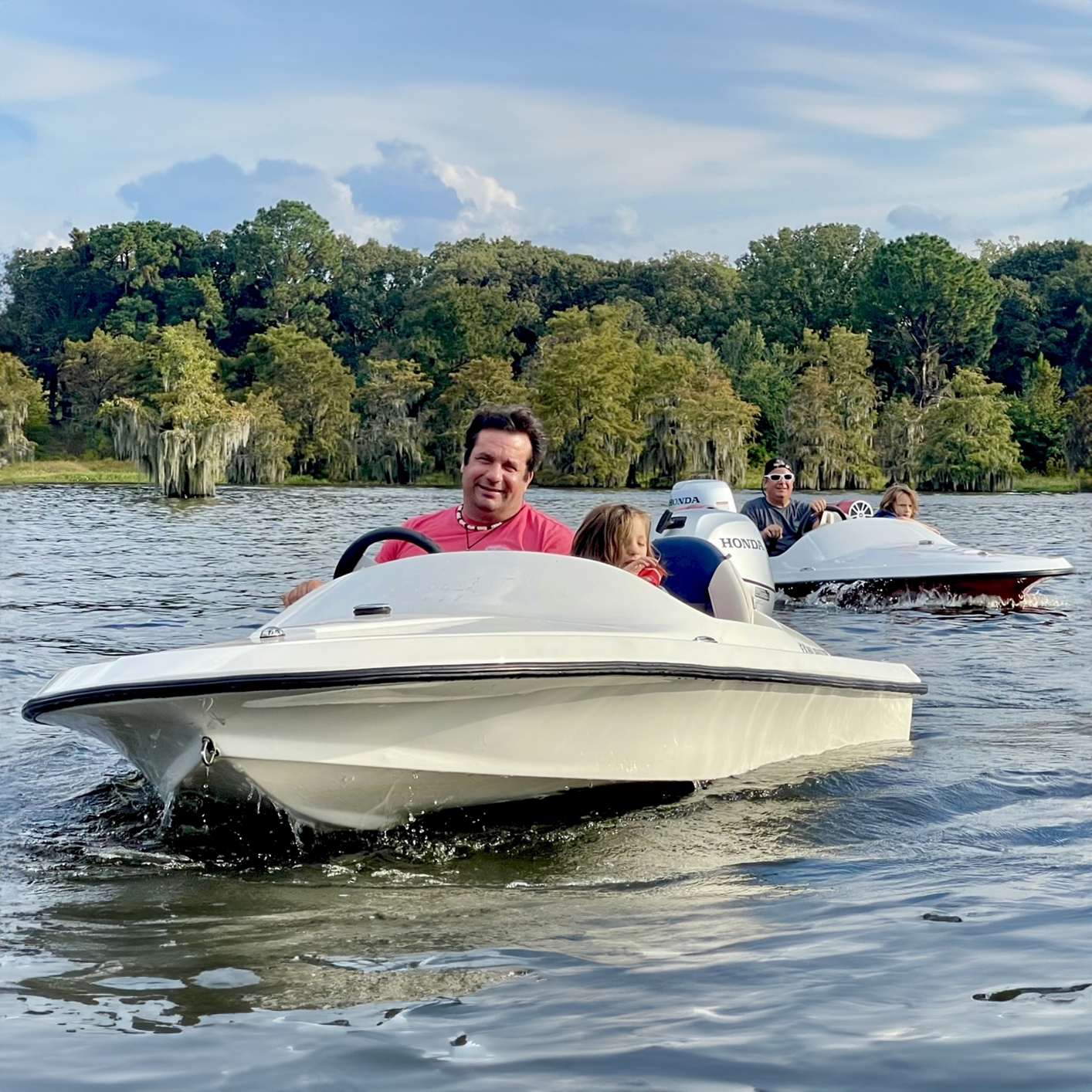

The Exhilarator 109. Designed to replace and improve the already popular 101 with improvements and a more up to date look. We have added to the length of the boat some to allow for taller and wider people to fit in the cockpit. Also we raised the back of the boat 5 inches and took out the splash well to allow for more storage space behind the seats.

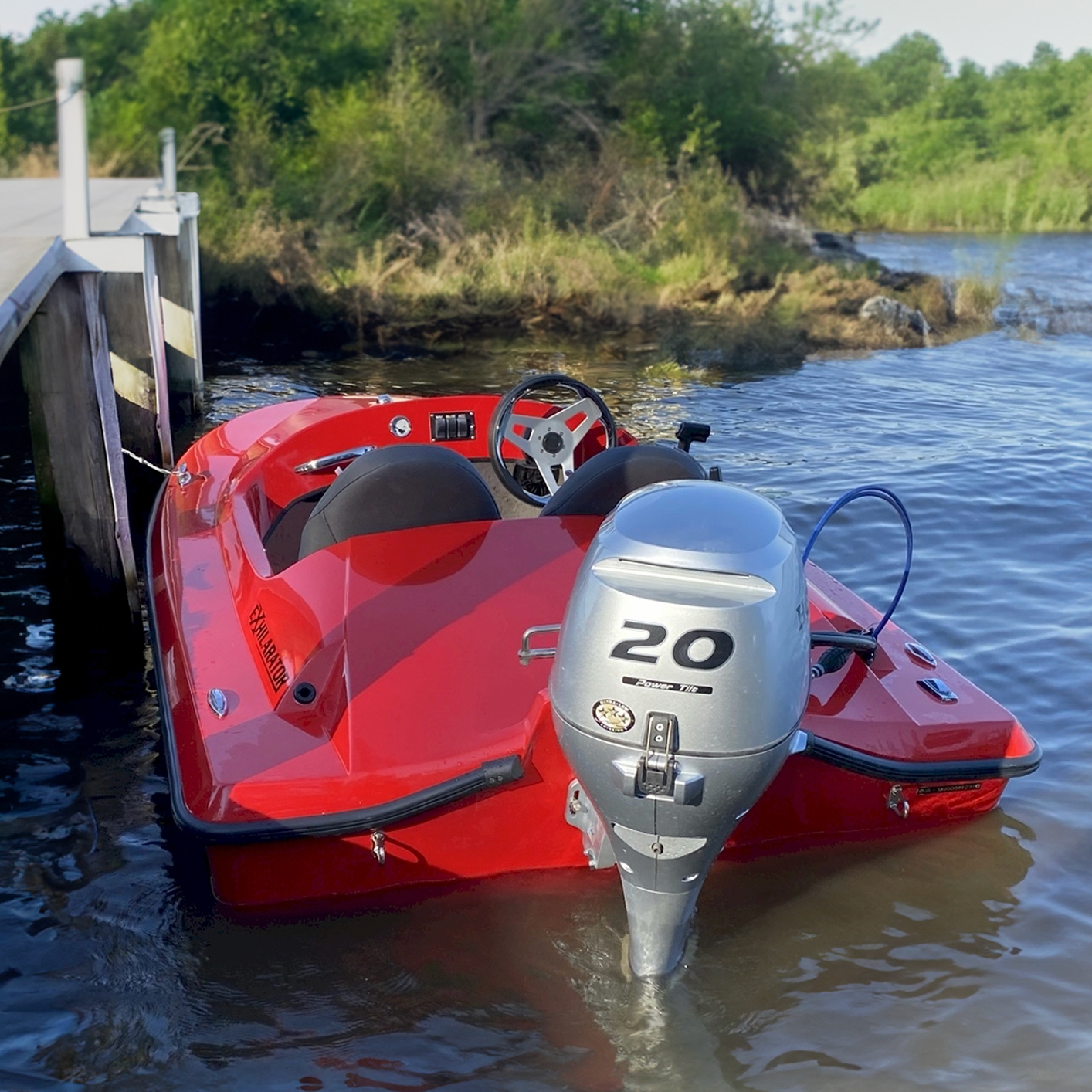

An example of speed and fuel consumption is that a 20HP Honda and stock prop with a optional 50lb lighter Lithium battery allows for top speeds from 25 - 30mph. A 20HP Fuel Consumption is 1.64GPH at Wide Open Throttle. A stabilizer wing is now standard on any outboard ordered with us, that makes the boat quick to plane and more fun to drive.
Small Power Boat Specifications+
| Specification | Details |
|---|---|
| Length | 10'9" |
| Boat Width | 5'3" |
| Boat Height | 2'7" |
| Cockpit Inside Width | 43" |
| Weight | ~290 lbs. |
| Capacity | 435 lbs. |
| Seating Capacity | 2 |
| Max Horse Power | 30 HP |
| Outboard Shaft Length | 20" |
| Fuel Consumption (20HP) | ~1.64 GPH at Wide Open Throttle |
| Trailer Bunks | 33" on center apart |
| Warranty | 3 Year Limited Warranty |
| Boat Motor & Trailer Dimensions | 17' Long, 5'3" Wide, 4'8" Tall |
| Storage | Can easily fit in a garage |
Features +
Exhilarator 109 Features
Fiberglass / No wood Construction / Nida core Floor- 2 Fold down vinyl seats
- Bolt off fiberglass seat base for easy seat replacement
- Rear Storage Compartment
- Foam floatation encapsulated in fiberglass
- LED Navigation lights
- auto bilge pump
- Dash Rocker Switches
- Bow and Stern Eyes
- SS Grab Handle
- Steering Wheel and Hub
- Steering Cable
- 4 Cleats
- Battery Tray
- Fuel Gauge
- Internal 12 Gallon Fuel Tank
- Stainless Steel Fuel fill
- Drain Plug
Delivery Options +
Exhilarator Delivery Options
Standard Trailer Delivery
Exhilarator boats are delivered by trailer.
Yard Drop-off (No Trailer)
For a yard drop-off, you will need a minimum of 3 able-bodied people present to help slide the boat from the trailer and move it.
