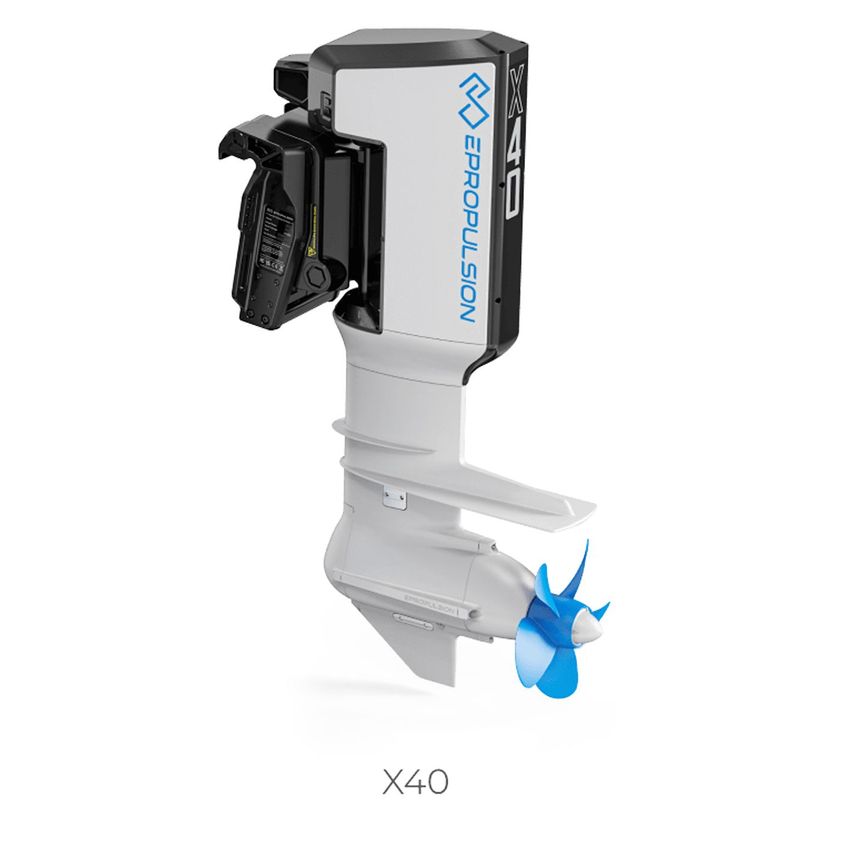

Epropulsion X40 Electric Outboard

Product Description

X Series Electric Outboard Motor The ePropulsion X Series electric outboards deliver zero-emission performance with an industry-leading powertrain efficiency of 88.2%. Designed with a sleek, fully integrated build, the X Series offers advanced features such as electric steering, cutting-edge driving assistance functions, and enhanced connectivity services. Its modular architecture simplifies installation and enables effortless integration with renewable energy systems, making it a versatile and eco-friendly choice for modern boating.

Performance and Range - X40
Output (kW)	Speed (kph / mph)	Runtime (hh:mm)	Range (km / mile)
10	12.6 / 7.8	4:00	50.4 / 31.3
20	15.4 / 9.6	2:00	30.8 / 19.1
40	35.9 / 22.3	1:00	35.9 / 22.3

* The X40�s performance data is based on a 20-foot V hull aluminum boat with two persons (130kg), powered by one X40 with four G102-100 batteries (total boat weight 1030kg), in calm lake water.

X40 Specifications
Feature	L Shaft	XL Shaft
Weight*	104 kg (220.3 lbs)	106 kg (233.7 lbs)
Shaft Length	508 mm (20″)	635 mm (25″)
Dimensions (L x W x H)	757 x 360 x 1233 mm (29.8 x 14.2 x 48.5″)	757 x 360 x 1360 mm (29.8 x 14.2 x 53.5″)
Input Power	40 kW
Nominal Voltage	96 VDC
Cooling System	Closed loop liquid cooling
Rated RPM	1500 to 2100
Trim and Tilt	Power trim & tilt
Trim / Tilt Angle	-4� to 61�
Steering	Integrated electric steering
Steering Angle	�45�
Propeller	15� x 10 3/4� propeller (available in L&R rotation) 13 3/8� x 16 3/4″ propeller (available in L&R rotation)
* Excluding batteries, propeller, and HMI system.
